ECS Montage Kit 200AHA

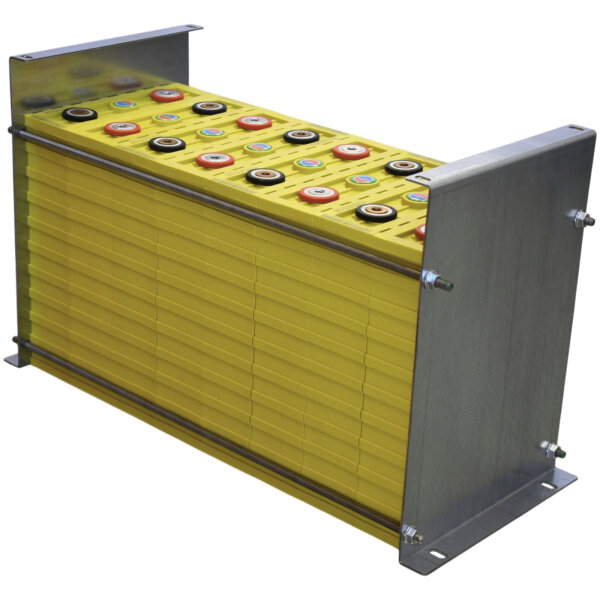

ECS assembly kit for 200Ah cells from Winston. The number of cells can be selected flexibly.

77,89 €

incl. 19% VAT , plus

This item has variations. Please select the requested variation.

Advantages over the original Winston Mounting Kits:

Mounting holes with slots for bolting the cell pack to the (vehicle) floor.
Easier assembly and disassembly thanks to threaded rods
Option to attach a cover above the cells (e.g. with plexiglass or perforated sheet metal)
Very sturdy construction in galvanized steel sheet (2 or 3 mm thickness depending on version)

Disadvantages over the original Winston Mounting Kits:

	4 cells	8 cells	16 cells
Width of the assembled kit [mm]:	282	504	948

	Applies to all variants
Height [mm]:	315
Length [mm]:	395
Width of mounting tab, bottom [mm]:	30
Width of mounting tab, top [mm]:	27
Sheet thickness [mm]:	2
Slotted hole, floor mounting:	for M8
Slotted hole, cover mounting:	for M6

Scope of Delivery:

2 galvanized Z-brackets
4 galvanized M8 threaded rods
8 M8 lock nuts to DIN 6926 (stainless steel A2) with flange, serrations and polyamide insert

Item information	Value
Shipping weight:	5,10 kg
Item weight:	5,10 kg
